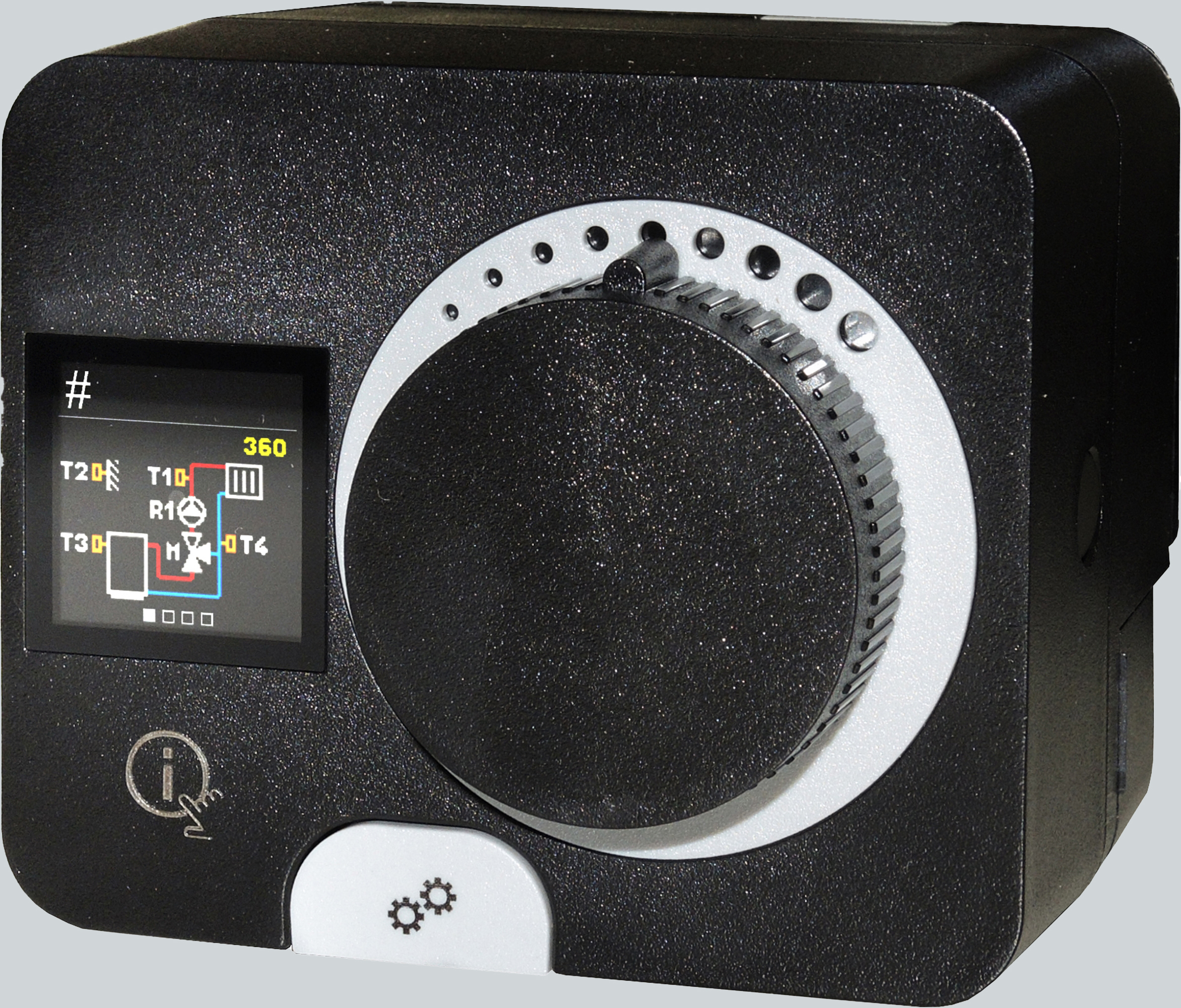

AHD20

Modern climatic controller with built-in actuator. It allows, through the choice of the desired climatic curve, an accurate control of the mixed circuit, optimizing the energy consumption.

Bidirectional, reversible with switcher actuator, limited operating range 90°, torque 6 Nm. Power supply 230 V. Protection: IP42.

• Setup wizard on first start with a multilingual interface;

• 2 selectable hydraulic schemes;

• Reversible TFT 240x240 pixel display, with visualization of hydraulic scheme and main information;

• Heating or cooling working modes;

• Junction box for easy connection of the sensors;

• Weekly program with time bands, Party functions, Eco and Holiday mode;

• Summer/winter automatic selection;

• Temperature adjustment by means of climatic curves (0.2÷2.6);

• Heating circuit control with maximum temperature limit for underfloor heating systems;

• Antifreeze protection and anti-lock circulating pump function;

• Optimization of the regulation of system by means of RCD2 (optional);

• 2 Pt1000 deep sensor (ø5x40 mm, 1 m and 3 m length, included) or with fixing kit to the pipe;

• Outside temperature sensor included;

• Quick fixing system to the mixing valve.
