M2 FIX3 CS DN32
2 WAY PUMP UNIT WITH RECIRCULATION THERMIC VALVE FOR SOLID FUEL BOILERS
The unit for 1”1/4 (180 mm) circulating pumps consists of:
Supply
• Flanged ball valve supplied with in-handle thermometer (red ring; 0°C-120°C).
• Connection with 20 mbar check valve.
• “T” Connection for thermic valve.
• Connection.
• Flanged ball valve supplied with in-handle thermometer (red ring; 0°C-120°C).
• Connection with 20 mbar check valve.
• “T” Connection for thermic valve.
• Connection.
Return
• Connection.

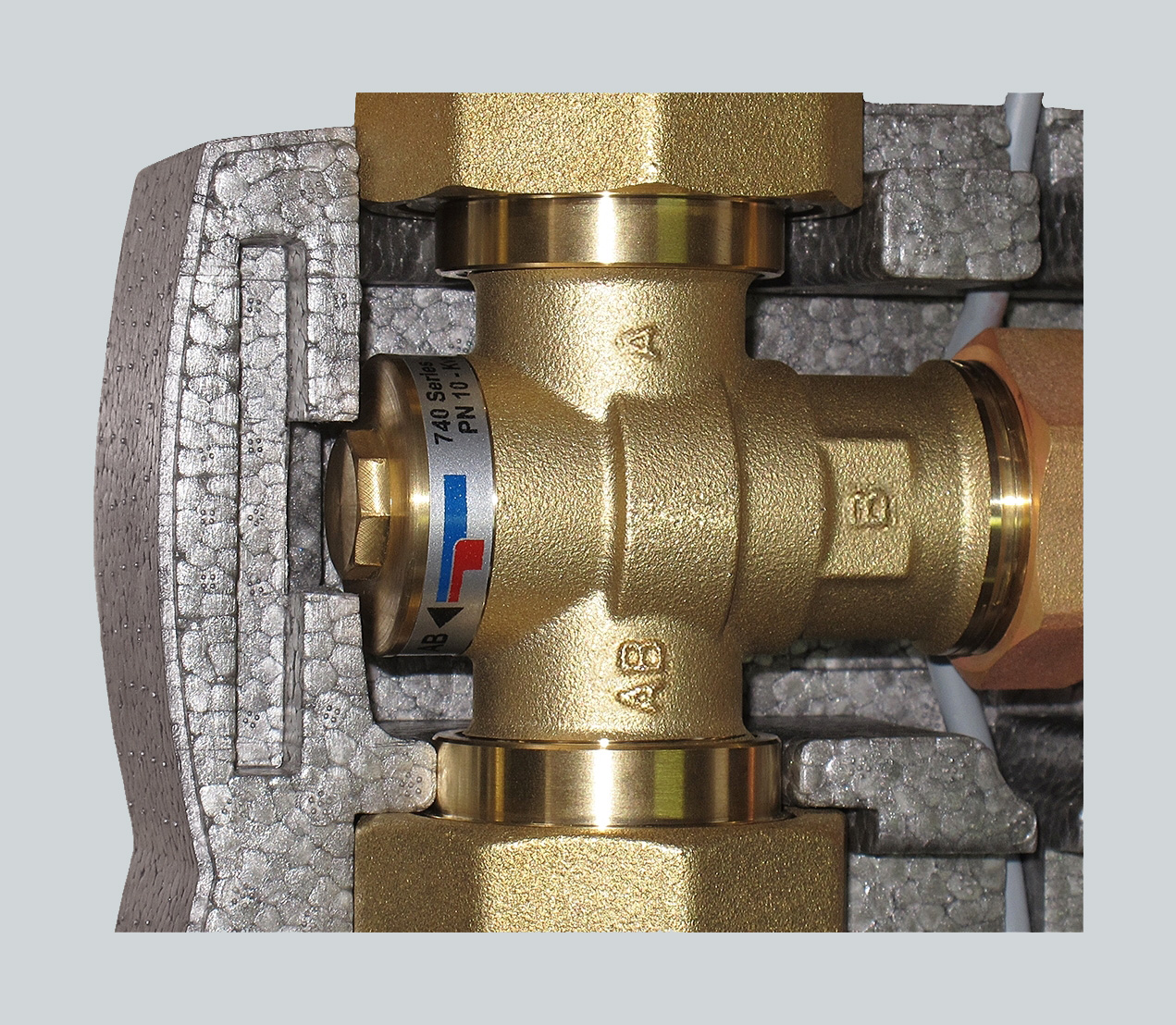

• Recirculation thermic valve with the sensor dipped into the fluid. Start opening temperature: 60°C (F3), 45°C (F4) and 55°C (F5).
• High efficiency synchronous pre-wired circulating pump (for the models that include it).
• Flanged ball valve supplied with in-handle thermometer (blue ring, range
0°C-120°C).
• Connection.
• Recirculation thermic valve with the sensor dipped into the fluid. Start opening temperature: 60°C (F3), 45°C (F4) and 55°C (F5).
• High efficiency synchronous pre-wired circulating pump (for the models that include it).
• Flanged ball valve supplied with in-handle thermometer (blue ring, range
0°C-120°C).
Centre distance 125 mm.
EPP insulation box (Dimensions: 250x400x170 mm).
PN 10, max temperature 100°C (unit without pump).
External connections: 1”1/4 Female.
FIELD OF USE
For power up to 93 kW (with ∆t 20 K) and maximum flow rate 4000 l/h.
Kvs Value: 7.0.
Approximate data calculated with a 8 m head circulating pump (Wilo Stratos Para 30/1-8). For an accurate sizing or for higher flow rates, please refer to the curve.
Code 1”1/4: 20555R-F(3/4/5)CS
With circulating pump: 20555R-F(3/4/5)CS-(A6/P7/P8)
Available circulating pumps:
Grundfos Alpha 1 L 32-60 (A6)
Wilo Para 30/8 SC (P7)
Wilo Stratos Para 30/1-8 (P8)
Available thermostatic mixing valves:
Start opening temperature 60°C (F3)
Start opening temperature 45°C (F4)
Start opening temperature 55°C (F5)
Installation
The DN32 anti-condensation pump unit, thanks to the generous dimensions of the thermic valve, can feed directly the distribution unit (hydraulic separator and zone manifold) without having to pass through the buffer tank. In fact the very low headlosses of the pump unit guarantee a hight flow rate in the primary circuit up to 4000 l/h.
